Product DescriptionCompany Info.<>
- Model:
- TJ-HB230L
- Molding method:
- Extrusion forming
- Applicable raw material:
- PE
- Product alias:
- Chemical barrel blow molding machine
- Product use:
- Production of plastic barrels
- Capacity of production:
- 180 kg/h
- Motor power:
- 110 kw
- Overall dimension:
- standard mm
- Weight:
- 180000 kg
- Maximum molding area:
- standard mm2
- Maximum forming depth:
- standard mm

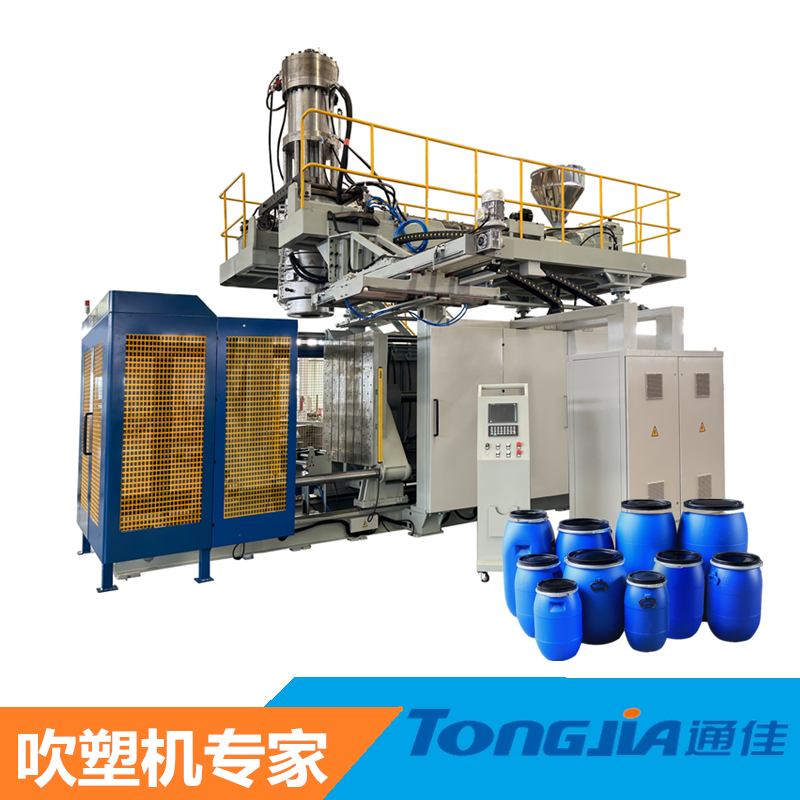

Blow molding machine for producing chemical barrels Double ring barrel production equipment
Blow molding machine is used to process various hollow products made of high molecular weight high density polyethylene (HMWHDPE). It consists of extruder, die, clamping mechanism, electrical system, hydraulic system, pneumatic system, cooling system, etc.
◆Extruder adopts high efficiency screw, high production efficiency, good plasticizing quality, uniform color mixing, uniform color and stable quality of hollow products. Suitable for processingHDPEpellets, recycled materials, color masterbatch mixture.
◆The clamping mechanism adopts double pull rod structure, direct pressure clamping, less clamping action, high rigidity, high strength and high reliability.
◆Hydraulic system adopts servo energy-saving hydraulic system; mold closing speed adopts proportional control, parison wall thickness control adopts servo wall thickness control system; pneumatic system adopts integrated pneumatic control board.
◆The electrical system adopts integrated computer for complete machine action control, man-machine interface adopts touch display, and300-point parison wall thickness control system.
